Current Measurement AC Voltage Detector Pen Sound And Zero/Live Wire Judgment High Safety Standard

Guilin Huayi Peakmeter Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Current Measurement AC Voltage Detector Pen Sound And Zero/Live Wire Judgment High Safety Standard

Brand Name : PEAKMETER

Model Number : DT01

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 156mm x20mm x20mm Product Weight Approx. 45g

Function 1 : Auto Power Off

Frequency : 50Hz/60Hz

Function 2 : Sound and Light Alarm

Measuring Range : 12-1000V

Function 3 : Zero/Live Wire Judgment

NCV Sensitivity : High, Medium, low sensitivity

Contact Now

Non-Contact Voltage Detection Pen

Features of Non-Contact Voltage Detection Pen

Specifications
AC Voltage detection range 12~1000V
Frequency 50Hz/60Hz
Alarm Mode Sound and Light
Sensitivity adjustment Manual switch
Zero/Live Wire Judgment Sound (fast, medium and slow] and LED lights
Auto Power Off About 5 minutes
Low Battery Indication
Service Temperature 0~40℃
Storage Temperature -10~50℃
Altitude <2000m
Power Supply CR2450 x1 button cell
Size
Net weight
Gross weight
Safety Rating IEC61010-1 CAT II 600V

Product Description of Voltage Detector

A Current Measurement AC Voltage Detector Pen with Sound and Zero/Live Wire Judgment is a handheld safety tool used by electricians and technicians to detect the presence of AC voltage without direct contact.

Non-contact AC voltage detection function: The default AC voltage detection range of the detector is about 48V ~ 1000V when the detector is turned on, and the power indicator light is red; press the "S" key briefly, and the detector can detect the AC voltage range of 12V ~ 1000V.

Features

1. Non-contact voltage detection: Allows users to check for live wires without touching exposed conductors.

2.Sound and LED alarm

3.Mini and compact pen, easy to carry.

4.Rotatable Battery Cover, Replacing the battery easier.

5.Distinguish the Zero Line and Fire line automatically.

6.Professional AC Voltage Detector with NCV Detection.

7.Range of Voltage sensitivity is from 12V to 1000V AC.

8.Automatic selection of 3 kinds of sensitivity.( High,Medium,low)

Services

  • All products have 12 months warranty, maintenance will not charge during this period (excluded damage of error operation, damage of battery or surface) , and delivery fee will be borne by the customer .
  • Material and service fee will be charged when warranty is expired, and delivery fee will be charged .
  • To product which is out of warranty but has already repaired, we will provide another three months free service if the same spare part has problem recurs .
  • Customer can refer the maintenance order to get more information .

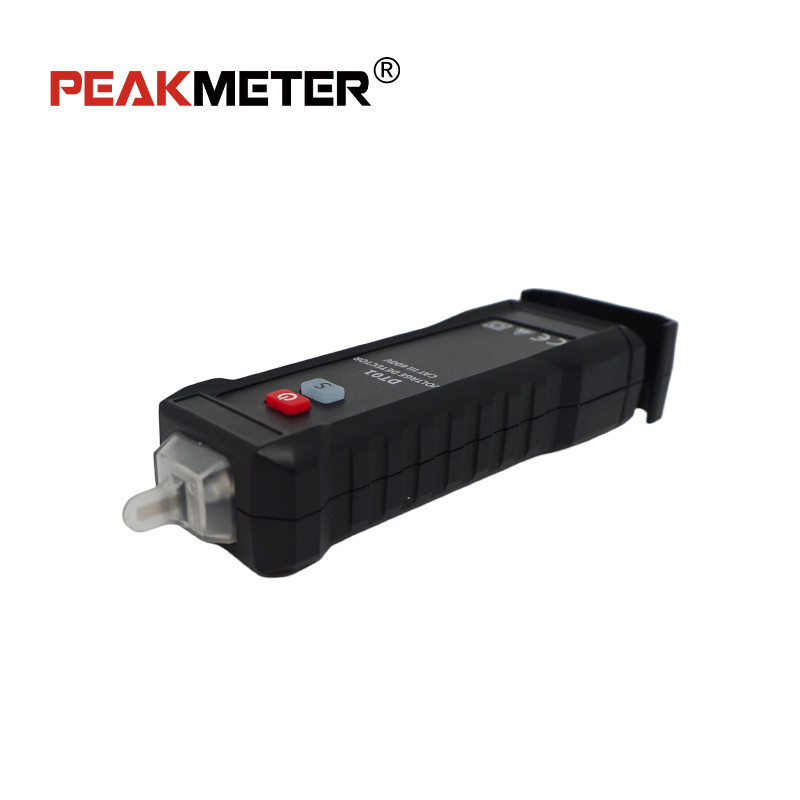

Detailed Images of Voltage Detector

Current Measurement AC Voltage Detector Pen Sound And Zero/Live Wire Judgment High Safety StandardCurrent Measurement AC Voltage Detector Pen Sound And Zero/Live Wire Judgment High Safety StandardCurrent Measurement AC Voltage Detector Pen Sound And Zero/Live Wire Judgment High Safety StandardCurrent Measurement AC Voltage Detector Pen Sound And Zero/Live Wire Judgment High Safety StandardCurrent Measurement AC Voltage Detector Pen Sound And Zero/Live Wire Judgment High Safety StandardCurrent Measurement AC Voltage Detector Pen Sound And Zero/Live Wire Judgment High Safety Standard
