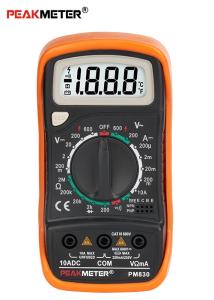

Hand - Held High Voltage Meter Multimeter , Commercial Electric Digital Multimeter

Name: Hand Held High Voltage Meter Multimeter Commercial Electric Digital Multimeter
Brand: PEAKMETER
Price: 1 USD

Brand Name : PEAKMETER

Model Number : PM830

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 138x69x31mm Product Weight Approx. 170g

Display : 2000 Counts

Function : Diode Test

Measuring Resistance : 200Ω-2MΩ

Measuring Current : 20uA~10A DC

Measuring Voltage : 200mV~600V AC/DC

Product Name : Digital Multimeter

Contact Now

Hand - Held Digital Multimeter With Manual Range , 2000 Counts Data Hold

Features of Hand-Held Digital Multimeter

2000 counts display
Over range indication: display “OL”
Data Hold, Diode test, Continuity
Measure AC & DC voltage, DC current, Resistance

Specifications	Range	Accuracy
DC Voltage	200mV/2V/20V/200V	±(0.5%+2)
	600V	±(0.8%+2)
AC Voltage	200V/600V	±(1.2%+10)
DC Current	200µA/2mA	±(1.0%+3)
	20mA	±(1.0%+5)
	200mA	±(1.5%+5)
	10A	±(3.0%+10)
Resistance	200Ω/2kΩ/20kΩ/200kΩ	±(0.8%+2)
	2MΩ	±(1.0%+5)
Feature
Display	2000 counts
Data Hold	√
Diode Test	√
Continuity	√
General
Power Supply	DC9V 6F22 battery
Net weight	196g (battery is not included)
Gross weight	339g
Size	145mm74mm44mm
Safety Rating	EN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V

Description of Hand-Held Digital Multimeter

This instrument of PM830 series is a small hand-held 31/2 digital multimeter featuring stable, highly reliable and anti-drop performance. It is provided with a LCD display of 15 mm height for clear reading. The circuit design takes LSI double integral protection circuit, making it a superior and handy instrument. It can be used to measure DC and AC voltage, DC current, resistance, diode.

Digital multimeter is designed based on IEC61010 600V and pollution degree 2.
This meter can measure AC & DC voltage, current, resistance, test diode and continuity.
